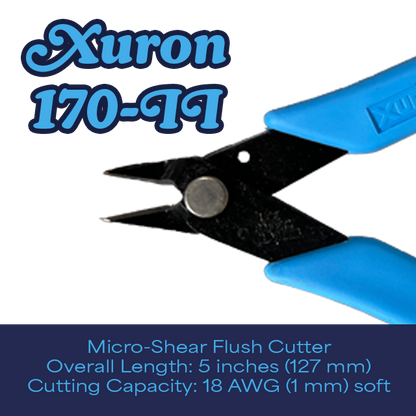

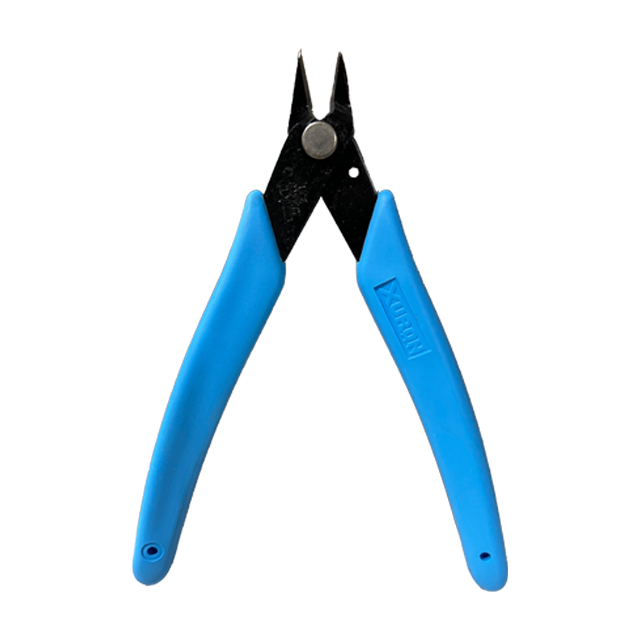

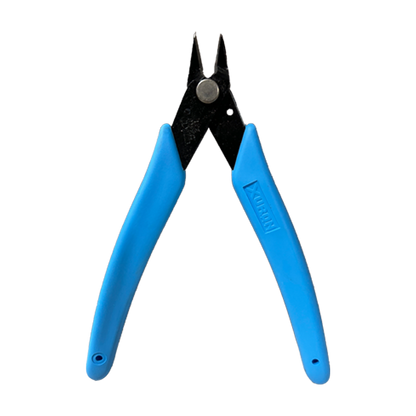

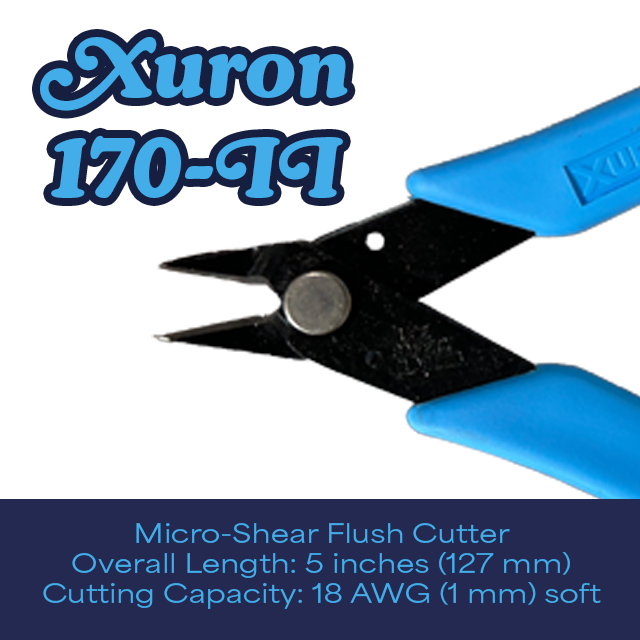

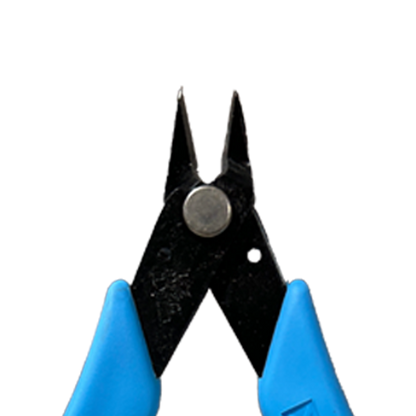

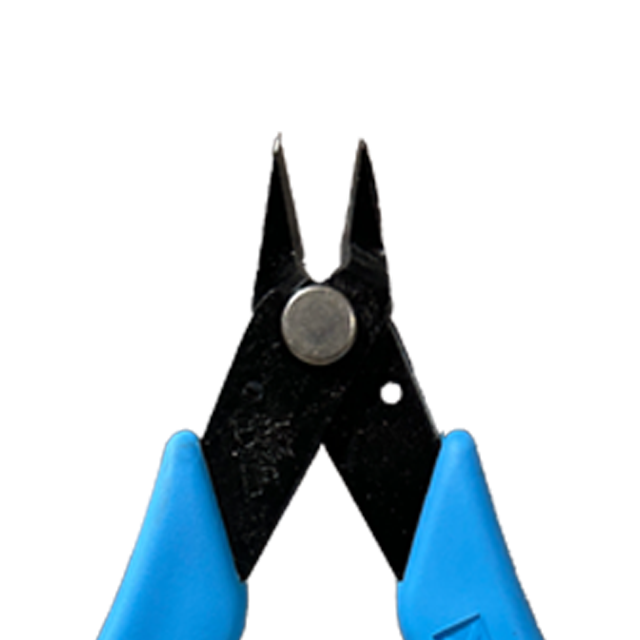

Xuron 170-II Micro-Shear® Flush Cutter

The Xuron 170 II Micro-Shear flush cutter represents the original design patented over 40 years ago (US Patent 3774301), engineered with a bypass blade cutting method for clean, precise cuts in electronics assembly and PCB component lead removal. This Made in USA tool delivers a 5 inch overall length with 18 AWG soft wire cutting capacity and Rockwell hardness of 54 to 56 Rc, ensuring reliable performance in production environments. The ergonomic comfortable grip combined with an ultra slim profile makes it ideal for accessing components in high density board areas during wire trimming and electronics production work. Flush cut design provides the precision required for professional rework, assembly, and production applications.

• Part Number: Xuron 170-II
• Type: Micro-Shear Flush Cutter
• Cutting Method: Bypass blade (Micro-Shear)
• Overall Length: 5" (127mm)
• Cutting Capacity: 18 AWG (1mm) soft wire
• Hardness: Rockwell 54-56 Rc
• Cut Type: Flush
• Origin: Made in USA
• Best For: Component lead cutting, PCB assembly, wire trimming, electronics production, high density board work
