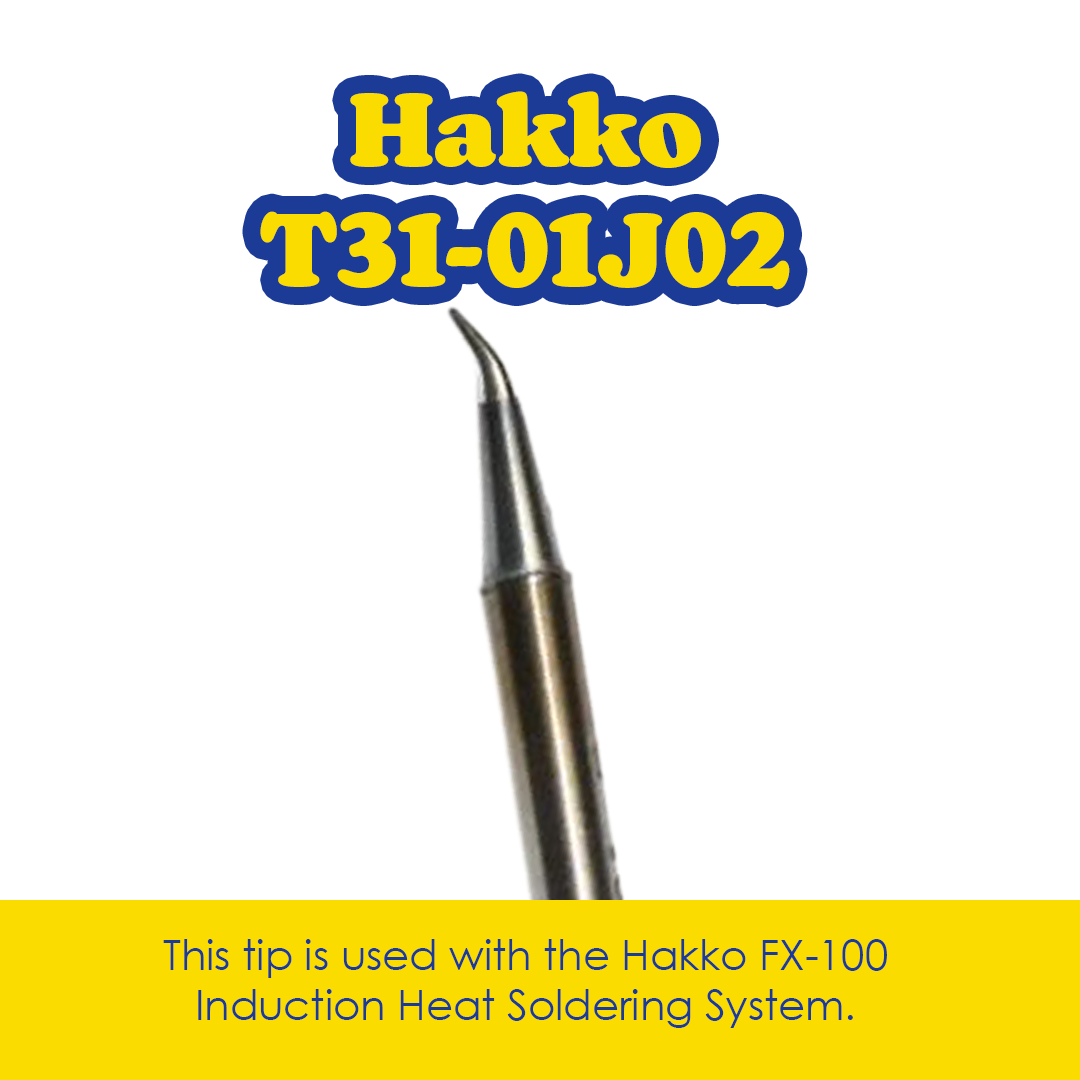

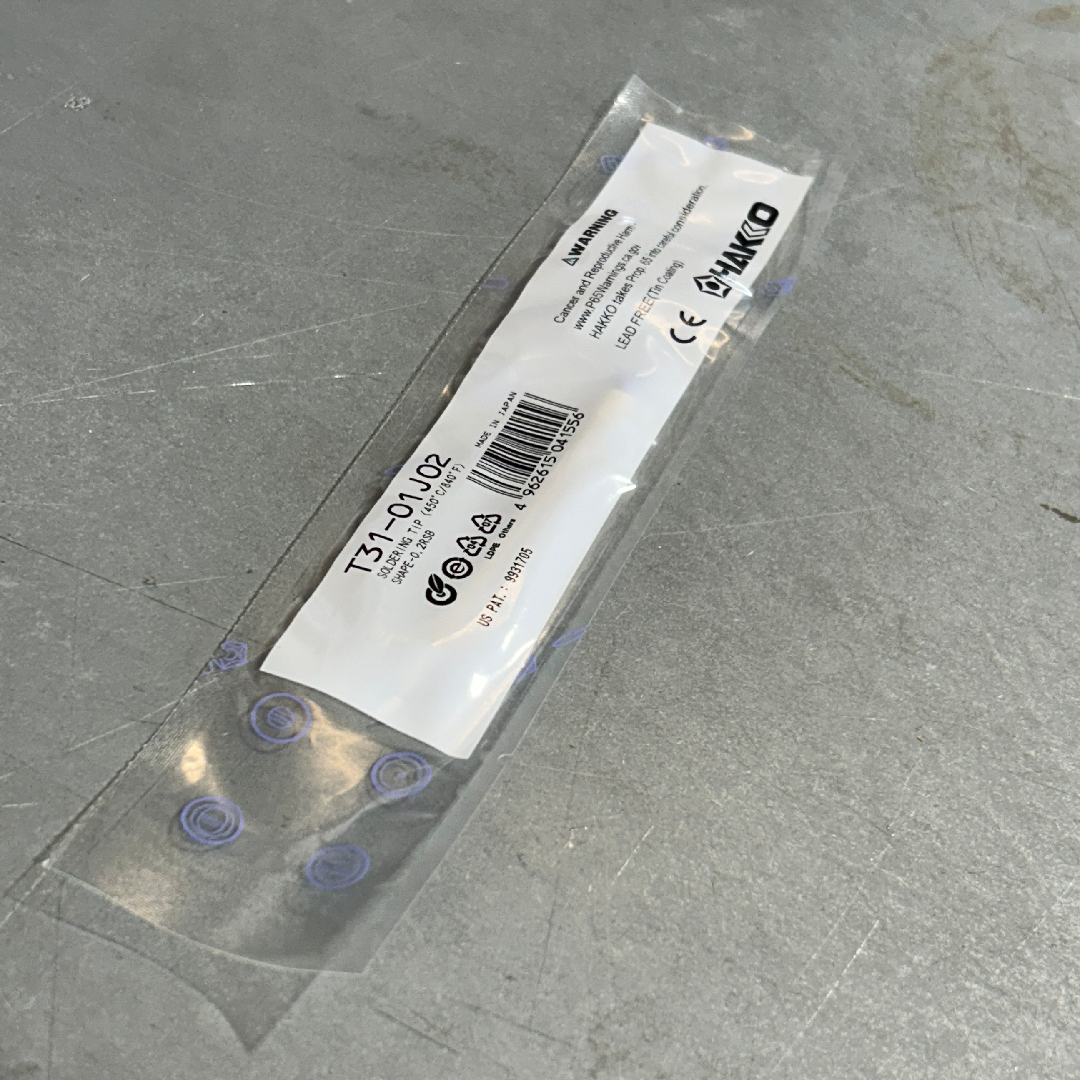

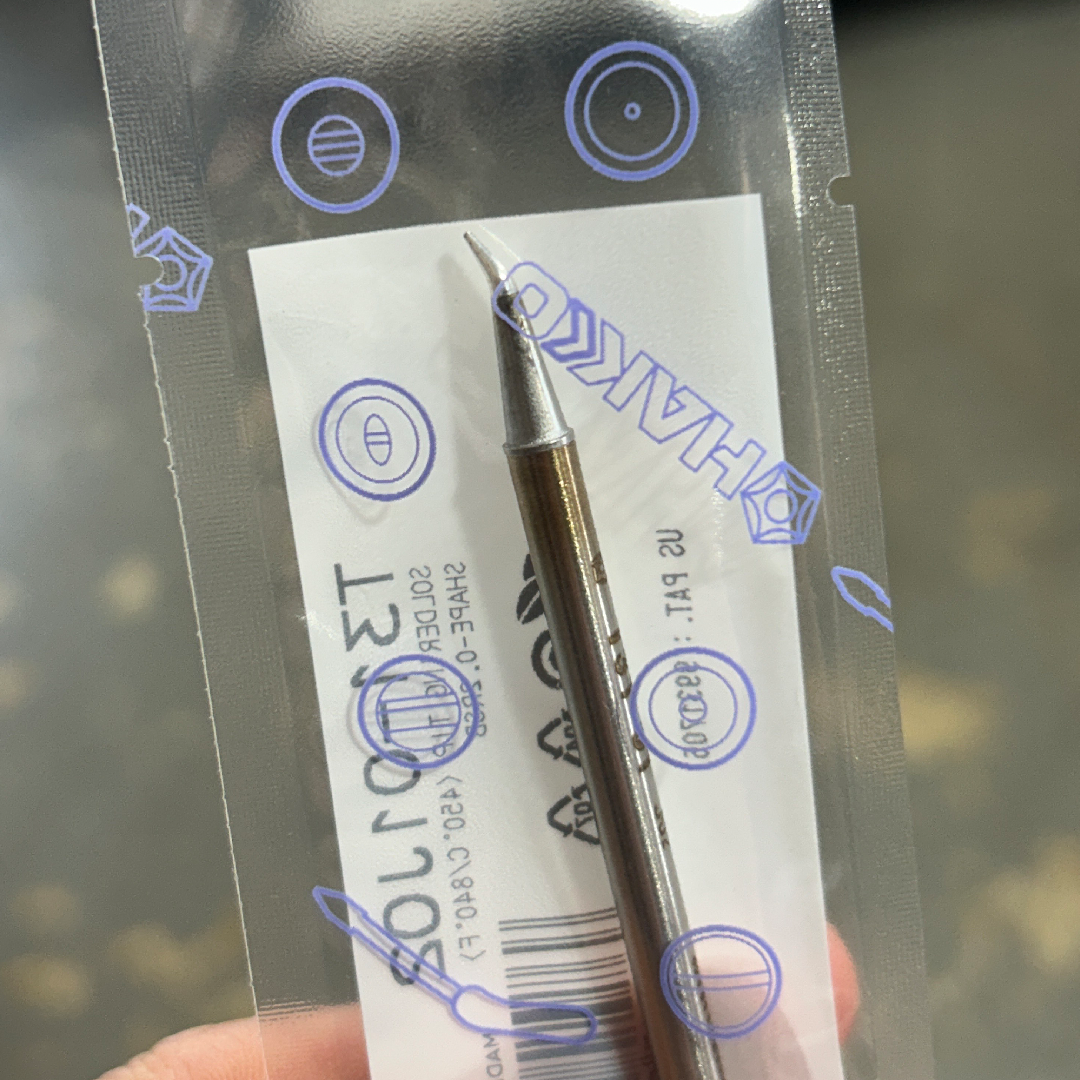

Hakko T31-01J02 Angled Tip

The Hakko T31-01J02 is a precision angled soldering tip engineered for the Hakko FX100 RF induction heat soldering station and FX1001 handpiece. This bent tip features a 0.2mm radius at a 30 degree angle and measures 4mm by 11mm, making it ideal for accessing tight joints and confined spaces on circuit boards during electronics assembly and rework. Designed for induction heating compatibility, it delivers rapid thermal response and consistent heat delivery, with a maximum operating temperature of 450 degrees Celsius (840 degrees Fahrenheit) for continuous professional use. Whether you need a replacement tip or a spare for your soldering station, this angled configuration excels in precision electronics assembly, component rework, and any application requiring controlled access to hard to reach solder joints.

• Part Number: Hakko T31-01J02
• Type: Angled Soldering Tip
• Tip Style: 0.2mm radius bent tip, 30 degree angle
• Dimensions: 4mm x 11mm
• Max Temperature: 450°C (840°F) continuous operation
• Heating Type: IH (induction heating) compatible
• Compatible Station: Hakko FX100 RF induction heat soldering station
• Compatible Handpiece: Hakko FX1001
• Best For: Tight joints, confined spaces, precision electronics assembly, rework, replacement or spare tip
