Solder Wire: Kester .125" 24-6040-0069 Sn60Pb40 3.3% /44

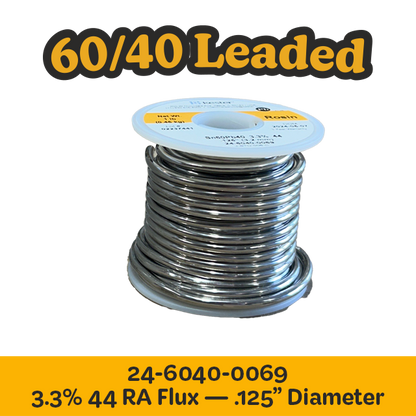

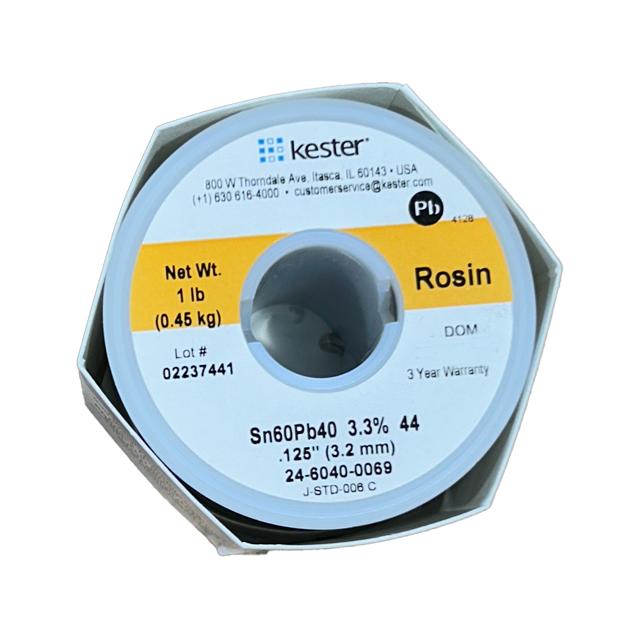

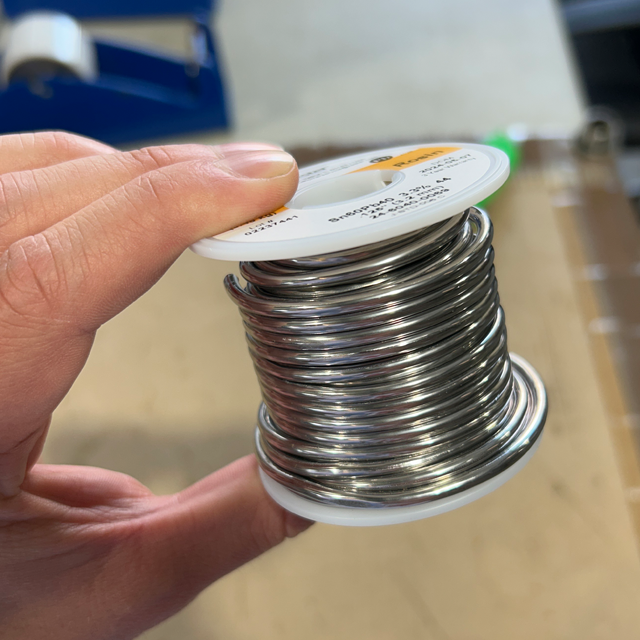

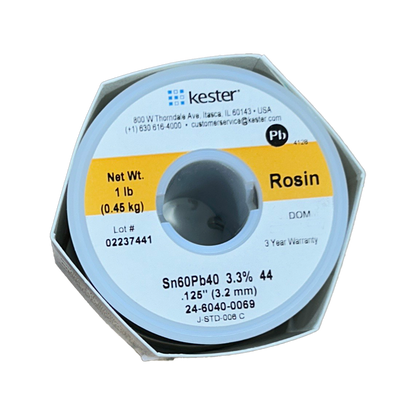

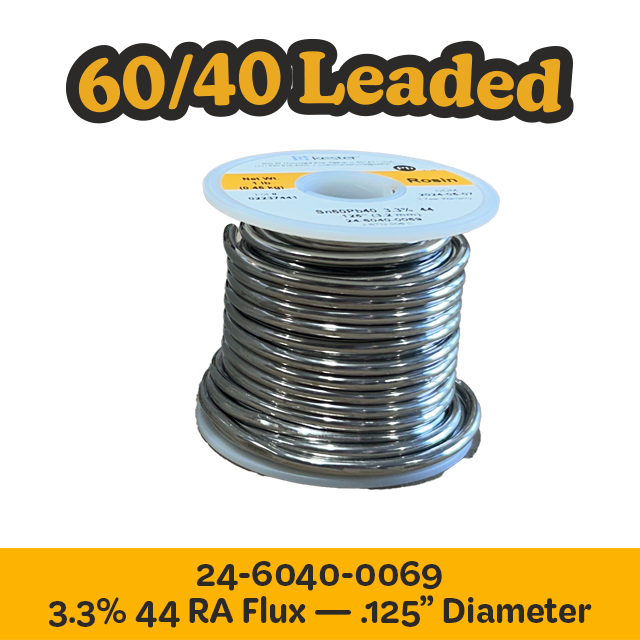

Kester 24-6040-0069 Sn60Pb40 Solder Wire, .125 Inch, 1 lb Spool

Kester 24-6040-0069 is a Sn60Pb40 solder wire with 60 percent tin and 40 percent lead supplied on a 1 lb spool in 0.125 inch diameter. The larger diameter delivers more solder per feed length, making it well suited for larger solder joints rather than fine pitch component work. The 3.3 percent 44 rosin activated flux core supports solder wetting and flows across a melting range of 183 to 190 degrees Celsius. Post solder cleaning should follow the flux technical data sheet and your assembly cleanliness requirements.

Key Features:

• Alloy Composition: Sn60Pb40 (60% Tin, 40% Lead)
• Diameter: 0.125" (3.175 mm)
• Weight: 1 lb (approximately 454 grams)
• Package Type: Spool (SPL)
• Flux Core: 3.3% 44 Rosin Activated Flux
• Melting Point:183-190 ° C   361-374° F


The 0.125 inch diameter provides more solder per feed length for larger joints.

Made In USA
