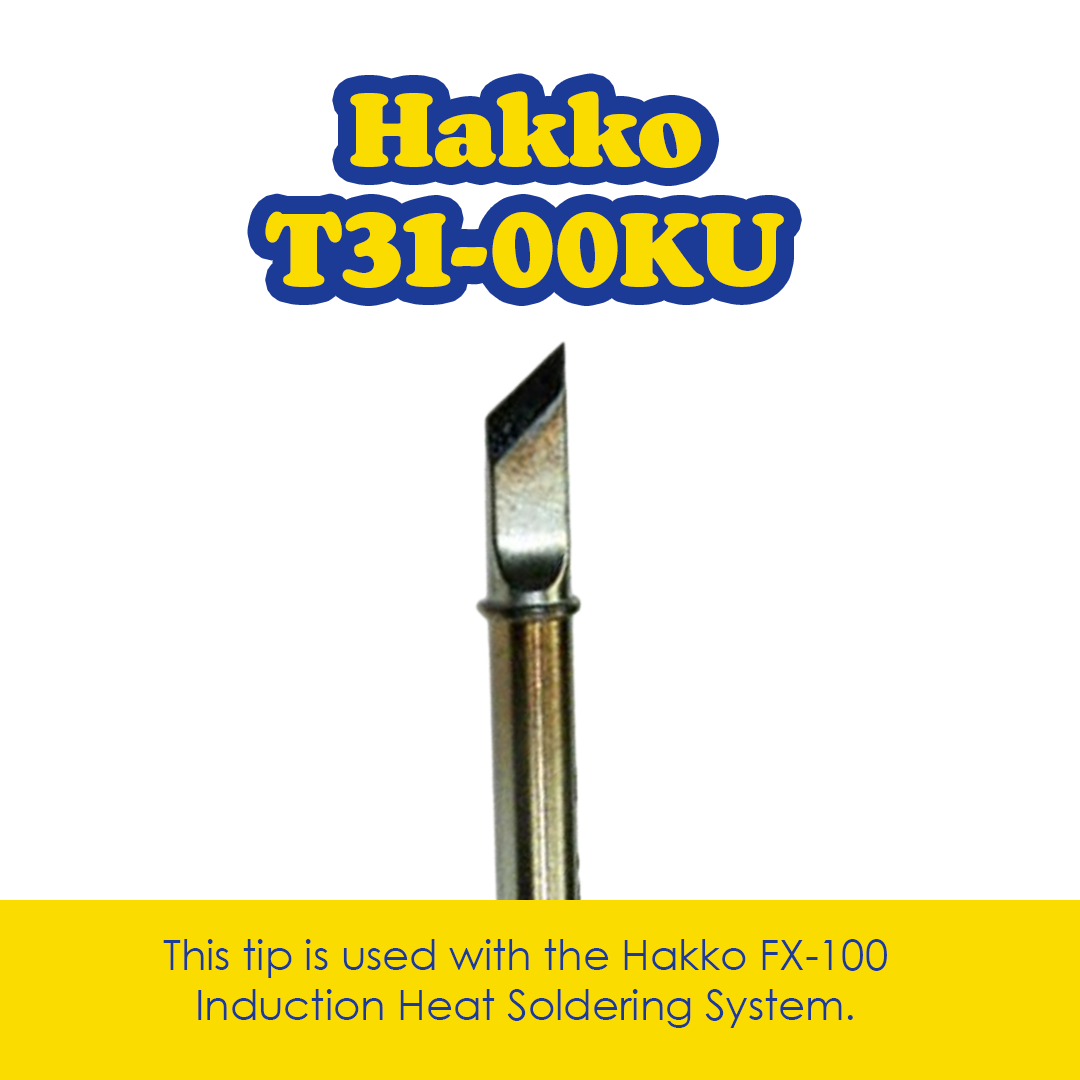

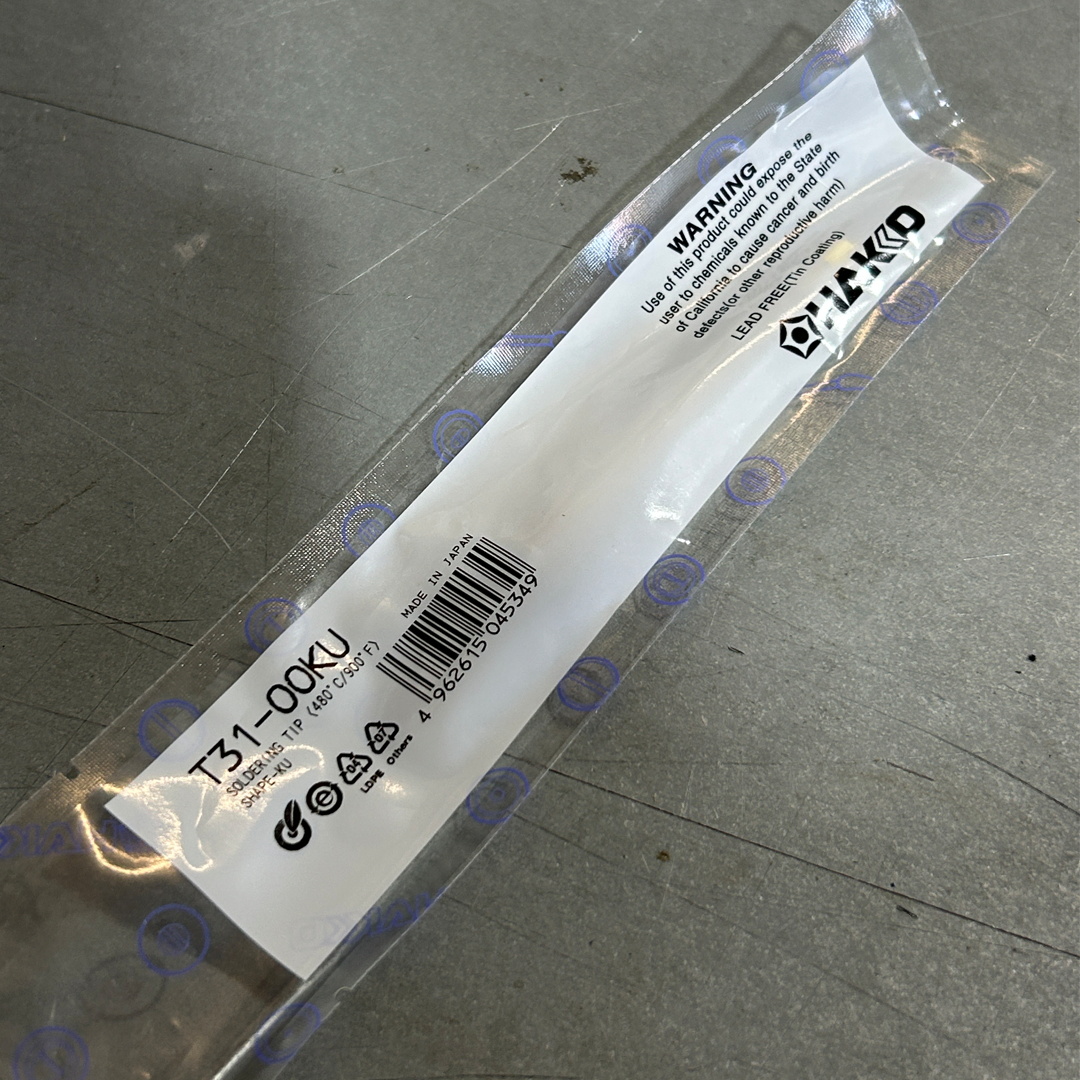

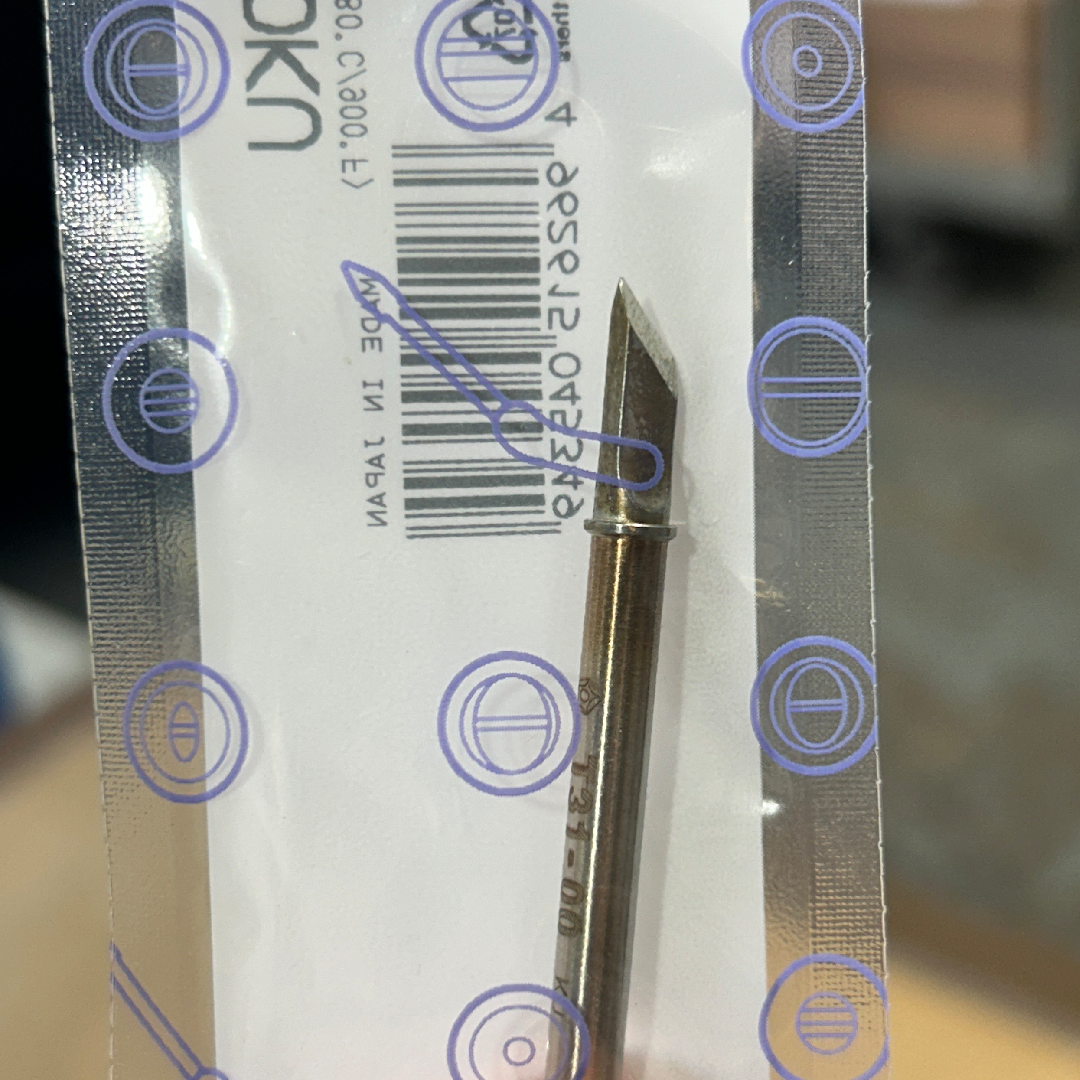

T31-00KU Knife Tip

The Hakko T31-00KU knife tip delivers precision soldering performance with its 4.8mm, 45 degree angled knife geometry designed to concentrate heat into tight joints and edge work on PCBs. This tip reaches a maximum operating temperature of 480 degrees Celsius (895 degrees Fahrenheit) and works seamlessly with both the Hakko FX100 induction heat soldering system and the Hakko FX1001-51 soldering iron, providing the controlled, repeatable heat you need for fine electronics assembly. The knife tip geometry excels when you need concentrated heat access to difficult to reach solder joints and edge work where standard tips fall short. Whether you're working on complex PCB layouts or precision electronics assembly, the induction heating capability ensures consistent, reliable soldering performance where tip geometry directly impacts your results.

• Part Number: Hakko T31-00KU
• Type: Knife Soldering Tip
• Tip Style: Knife, 4.8mm, 45 degree angle
• Max Temperature: 480°C (895°F)
• Heating Type: IH (induction heating) compatible
• Compatible Station: Hakko FX100 induction heat soldering system
• Compatible Iron: Hakko FX1001-51
• Best For: PCB soldering, fine electronics assembly, tight joint access, edge work, precision controlled soldering
• Maintenance: Replace when wear reduces thermal transfer or tip geometry degrades
