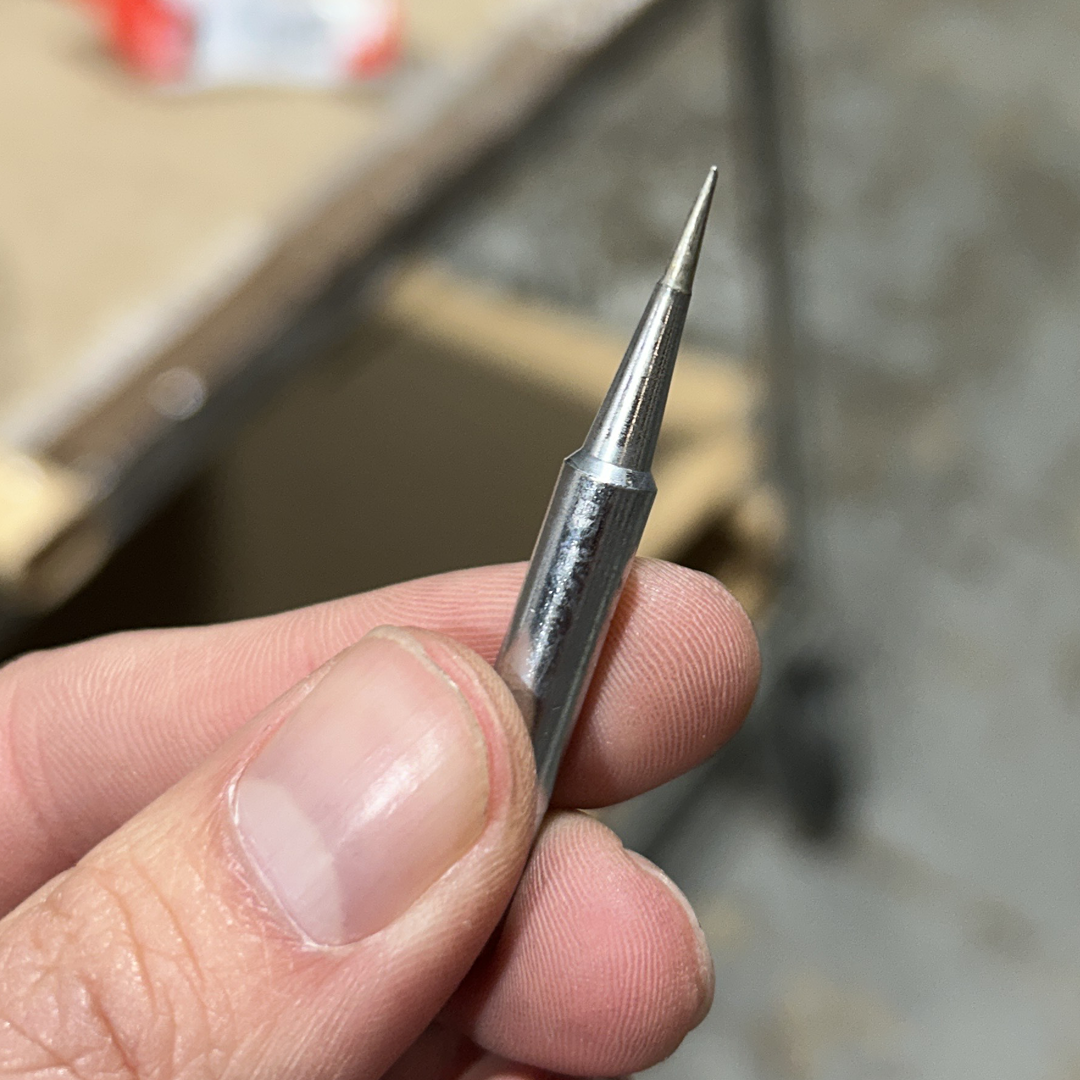

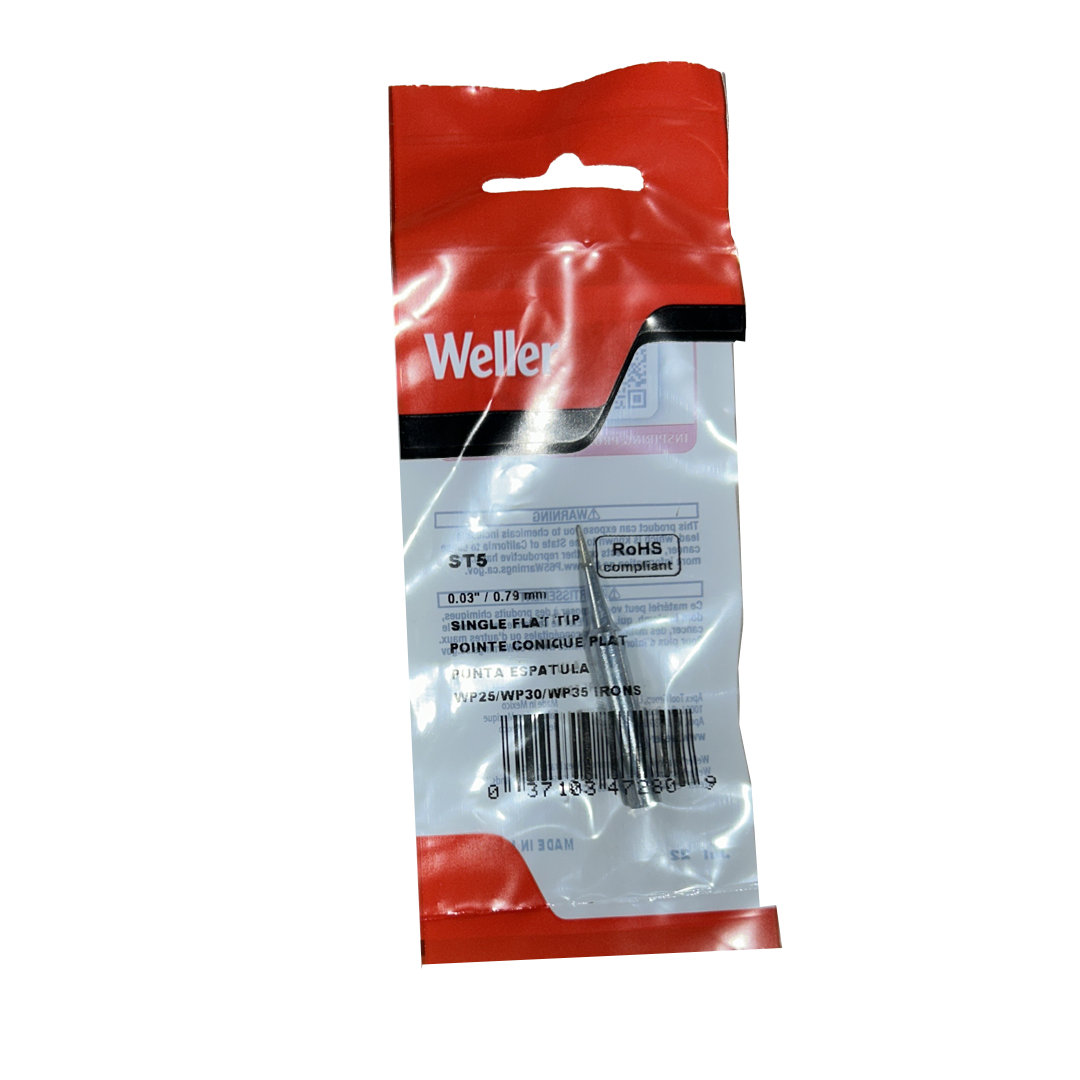

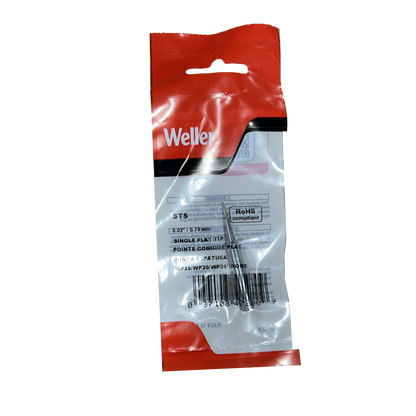

Weller ST5 Single Flat Soldering Tip, .031 Inch

The Weller ST5 is an ST series replacement tip featuring a single flat working surface 0.031 inch wide, approximately 0.79 mm, with a 0.750 inch reach of roughly 19.05 mm. This tip is compatible with Weller WP25, WP30, and WP35 soldering irons as well as the WLC100 station. The narrow flat geometry provides an alternative to conical points, delivering controlled contact across small pads and fine component leads without excessive thermal spreading. This package contains one tip.

• Part Number: Weller ST5
• Product Type: Replacement soldering tip
• Tip Series: ST
• Tip Style: Single flat
• Tip Width: 0.031 inch, approximately 0.79 mm
• Reach: 0.750 inch, approximately 19.05 mm
• Compatible Models: Weller WP25, WP30, WP35, and WLC100
